[Toy Project] PE Viewer 툴 만들기(2) print_dos_header.c

#include "header.h"

void print_dos_header(FILE* fp, IMAGE_DOS_HEADER* idh)
{
    printf("=============== [Dos Header] ===============\n\n");
    // 파일의 처음으로 이동하여 offset 가져오기
    offset = set_file_offset(fp, 0);
    printf("[%08X] - e_magic[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_magic), idh->e_magic);
    offset = get_file_offset(fp, sizeof(idh->e_magic));

    printf("[%08X] - e_cblp[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_cblp), idh->e_cblp);
    offset = get_file_offset(fp, sizeof(idh->e_cblp));

    printf("[%08X] - e_cp[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_cp), idh->e_cp);
    offset = get_file_offset(fp, sizeof(idh->e_cp));

    printf("[%08X] - e_crlc[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_crlc), idh->e_crlc);
    offset = get_file_offset(fp, sizeof(idh->e_crlc));

    printf("[%08X] - e_cparhdr[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_cparhdr), idh->e_cparhdr);
    offset = get_file_offset(fp, sizeof(idh->e_cparhdr));

    printf("[%08X] - e_minalloc[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_minalloc), idh->e_minalloc);
    offset = get_file_offset(fp, sizeof(idh->e_minalloc));

    printf("[%08X] - e_maxalloc[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_maxalloc), idh->e_maxalloc);
    offset = get_file_offset(fp, sizeof(idh->e_maxalloc));

    printf("[%08X] - e_ss[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_ss), idh->e_ss);
    offset = get_file_offset(fp, sizeof(idh->e_ss));

    printf("[%08X] - e_sp[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_sp), idh->e_sp);
    offset = get_file_offset(fp, sizeof(idh->e_sp));

    printf("[%08X] - e_csum[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_csum), idh->e_csum);
    offset = get_file_offset(fp, sizeof(idh->e_csum));

    printf("[%08X] - e_ip[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_ip), idh->e_ip);
    offset = get_file_offset(fp, sizeof(idh->e_ip));

    printf("[%08X] - e_cs[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_cs), idh->e_cs);
    offset = get_file_offset(fp, sizeof(idh->e_cs));

    printf("[%08X] - e_lfarlc[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_lfarlc), idh->e_lfarlc);
    offset = get_file_offset(fp, sizeof(idh->e_lfarlc));

    printf("[%08X] - e_ovno[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_ovno), idh->e_ovno);
    offset = get_file_offset(fp, sizeof(idh->e_ovno));

    for (int i = 0; i < 4; i++)
    {
        printf("[%08X] - e_res[%d][%zdbyte]\t: %04X\n", offset, i, sizeof(idh->e_res[i]), idh->e_res[i]);
        offset = get_file_offset(fp, sizeof(idh->e_res[i]));
    }
    printf("[%08X] - e_oemid[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_oemid), idh->e_oemid);
    offset = get_file_offset(fp, sizeof(idh->e_oemid));

    printf("[%08X] - e_oeminfo[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_oeminfo), idh->e_oeminfo);
    offset = get_file_offset(fp, sizeof(idh->e_oeminfo));

    for (int i = 0; i < 10; i++)
    {
        printf("[%08X] - e_res2[%d][%zdbyte]\t: %04X\n", offset, i, sizeof(idh->e_res2[i]), idh->e_res2[i]);
        offset = get_file_offset(fp, sizeof(idh->e_res2[i]));
    }

    printf("[%08X] - e_lfanew[%zdbyte]\t: %08X\n", offset, sizeof(idh->e_lfanew), idh->e_lfanew);
    offset = get_file_offset(fp, sizeof(idh->e_lfanew));

    printf("\n============================================\n\n");
}



---

매개변수

void print_dos_header(FILE* fp, IMAGE_DOS_HEADER* idh)



인자로 파일 포인터와 dos header 구조체 정보를 받는다.



fp는 offset도 같이 출력해주기 위함이다.



---

IMAGE_DOS_HEADER 구조체 정의

typedef struct _IMAGE_DOS_HEADER {      // DOS .EXE header
    WORD   e_magic;                     // Magic number
    WORD   e_cblp;                      // Bytes on last page of file
    WORD   e_cp;                        // Pages in file
    WORD   e_crlc;                      // Relocations
    WORD   e_cparhdr;                   // Size of header in paragraphs
    WORD   e_minalloc;                  // Minimum extra paragraphs needed
    WORD   e_maxalloc;                  // Maximum extra paragraphs needed
    WORD   e_ss;                        // Initial (relative) SS value
    WORD   e_sp;                        // Initial SP value
    WORD   e_csum;                      // Checksum
    WORD   e_ip;                        // Initial IP value
    WORD   e_cs;                        // Initial (relative) CS value
    WORD   e_lfarlc;                    // File address of relocation table
    WORD   e_ovno;                      // Overlay number
    WORD   e_res[4];                    // Reserved words
    WORD   e_oemid;                     // OEM identifier (for e_oeminfo)
    WORD   e_oeminfo;                   // OEM information; e_oemid specific
    WORD   e_res2[10];                  // Reserved words
    LONG   e_lfanew;                    // File address of new exe header
  } IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;



Image_dos_header 구조체는 winnt.h 헤더 파일에 위와 같이 되어 있다.



중요한 멤버는 e_magic과 e_lfanew이다.



e_magic의 값으로 PE 파일인지 판단하고, e_lfanew의 값으로 NT header의 시작 offset을 알 수 있다.

---

출력 코드

offset = set_file_offset(fp, 0);
printf("[%08X] - e_magic[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_magic), idh->e_magic);
offset = get_file_offset(fp, sizeof(idh->e_magic));

printf("[%08X] - e_cblp[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_cblp), idh->e_cblp);
offset = get_file_offset(fp, sizeof(idh->e_cblp));

printf("[%08X] - e_cp[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_cp), idh->e_cp);
offset = get_file_offset(fp, sizeof(idh->e_cp));

printf("[%08X] - e_crlc[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_crlc), idh->e_crlc);
offset = get_file_offset(fp, sizeof(idh->e_crlc));

printf("[%08X] - e_cparhdr[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_cparhdr), idh->e_cparhdr);
offset = get_file_offset(fp, sizeof(idh->e_cparhdr));

printf("[%08X] - e_minalloc[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_minalloc), idh->e_minalloc);
offset = get_file_offset(fp, sizeof(idh->e_minalloc));

printf("[%08X] - e_maxalloc[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_maxalloc), idh->e_maxalloc);
offset = get_file_offset(fp, sizeof(idh->e_maxalloc));

printf("[%08X] - e_ss[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_ss), idh->e_ss);
offset = get_file_offset(fp, sizeof(idh->e_ss));

printf("[%08X] - e_sp[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_sp), idh->e_sp);
offset = get_file_offset(fp, sizeof(idh->e_sp));

printf("[%08X] - e_csum[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_csum), idh->e_csum);
offset = get_file_offset(fp, sizeof(idh->e_csum));

printf("[%08X] - e_ip[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_ip), idh->e_ip);
offset = get_file_offset(fp, sizeof(idh->e_ip));

printf("[%08X] - e_cs[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_cs), idh->e_cs);
offset = get_file_offset(fp, sizeof(idh->e_cs));

printf("[%08X] - e_lfarlc[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_lfarlc), idh->e_lfarlc);
offset = get_file_offset(fp, sizeof(idh->e_lfarlc));

printf("[%08X] - e_ovno[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_ovno), idh->e_ovno);
offset = get_file_offset(fp, sizeof(idh->e_ovno));

for (int i = 0; i < 4; i++)
{
    printf("[%08X] - e_res[%d][%zdbyte]\t: %04X\n", offset, i, sizeof(idh->e_res[i]), idh->e_res[i]);
    offset = get_file_offset(fp, sizeof(idh->e_res[i]));
}
printf("[%08X] - e_oemid[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_oemid), idh->e_oemid);
offset = get_file_offset(fp, sizeof(idh->e_oemid));

printf("[%08X] - e_oeminfo[%zdbyte]\t: %04X\n", offset, sizeof(idh->e_oeminfo), idh->e_oeminfo);
offset = get_file_offset(fp, sizeof(idh->e_oeminfo));

for (int i = 0; i < 10; i++)
{
    printf("[%08X] - e_res2[%d][%zdbyte]\t: %04X\n", offset, i, sizeof(idh->e_res2[i]), idh->e_res2[i]);
    offset = get_file_offset(fp, sizeof(idh->e_res2[i]));
}

printf("[%08X] - e_lfanew[%zdbyte]\t: %08X\n", offset, sizeof(idh->e_lfanew), idh->e_lfanew);
offset = get_file_offset(fp, sizeof(idh->e_lfanew));

printf("\n============================================\n\n");

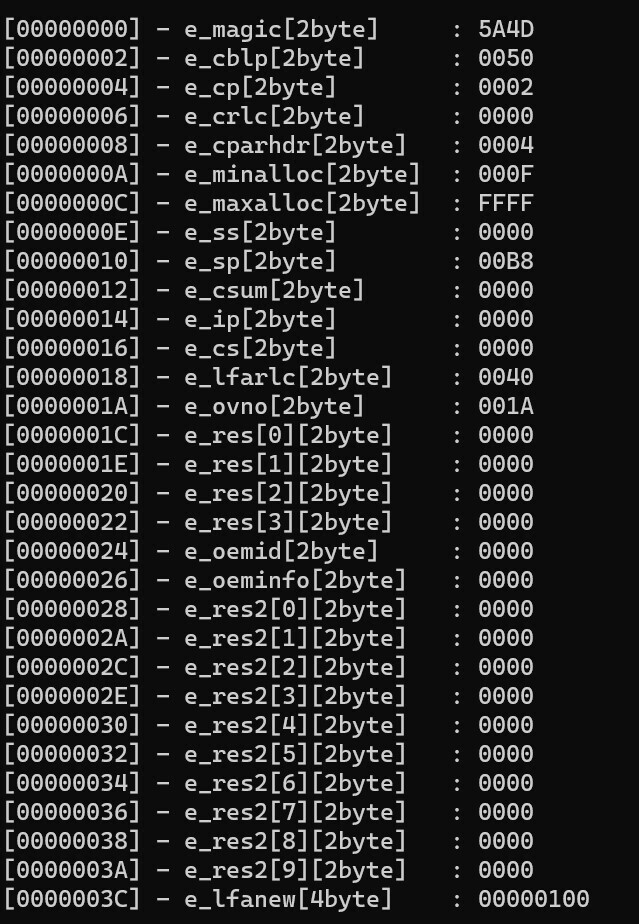

PE 헤더에서 가장 맨 앞은 Dos header이기 때문에 파일 내에서의 현재 위치를 맨 처음으로 설정하고 그 값을 offset에 담는다.



offset 값, 각 IMAGE_DOS_HEADER 멤버의 크기, 각 IMAGE_DOS_HEADER 멤버의 값을 출력한다.



출력하고 나면, 출력했던 IMAGE_DOS_HEADER 멤버의 크기만큼 offset을 움직여 값을 가져와 offset 변수에 담는다.



위와 같이 출력하고, 파일 내에서 각 IMAGE_DOS_HEADER 멤버의 크기만큼 offset 값을 옮기는 것이 전부이다.
